The density of residents in cities can be quite high, especially in cities with millions of inhabitants, and this is one of the reasons for the very rapid spread of various infectious diseases*

*in particular, COVID -19 or coronavirus

To preserve life and health, people must observe personal hygiene

Governments and the medical community are putting a lot of effort into protecting citizens from this disease. The use of masks and gloves for individual preventive protection during a pandemic

is not enough

In order to protect the population to a greater extent (up to 90%), it is necessary to use individual spittoons to prevent the spread of severe and dangerous infectious diseases in the area where the infected person is located

A mobile spittoon for collecting human sputum, containing a housing, a lid and an impregnating gasket for absorbing sputum

Description
of the invention

Construction

Cap

body

protective pad

impregnating gasket

The product is used as a disposable, made of plastic in the form of corrugation in order to form tiers for fixing the used gasket

1

2

3

4

2 - body

3 - protective pad

4 - impregnating gasket

1 - cap

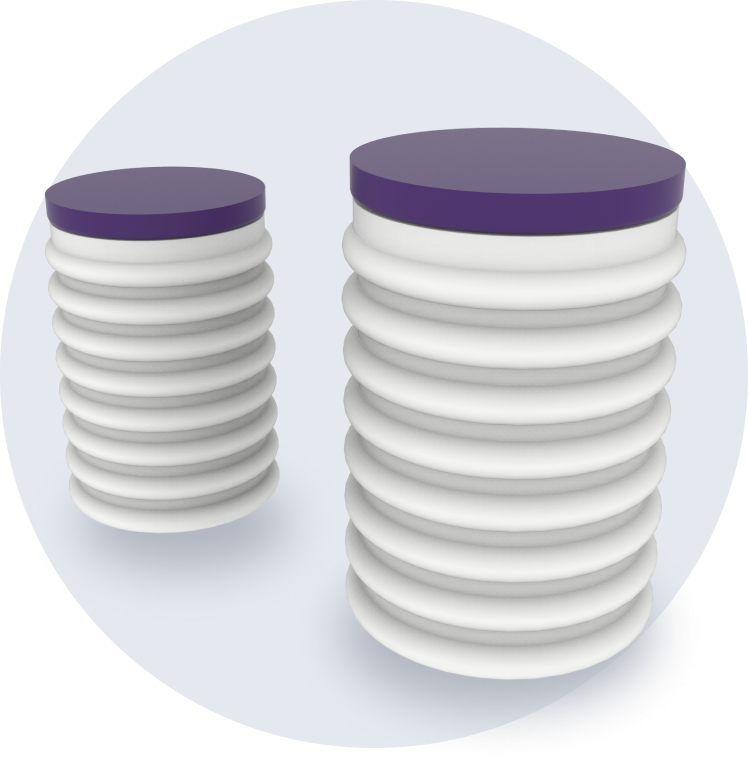

The housing is made of corrugated plastic, in such a way that tiers are formed in it to accommodate impregnating gaskets

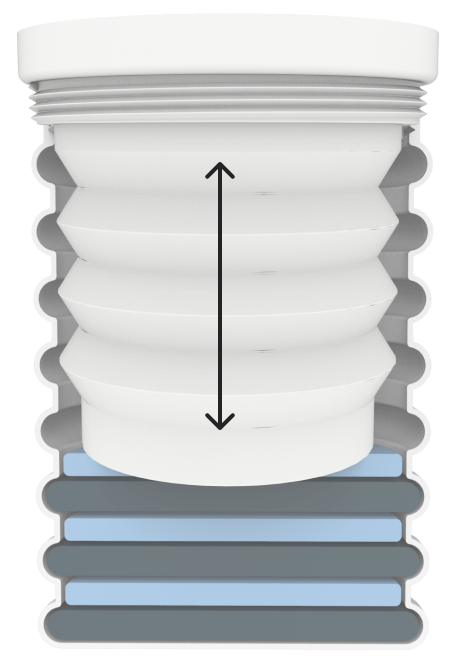

The lid is equipped with a clamping mechanism in the form of an accordion to prevent vibrations and retention of the impregnating gasket and protective lining in the housing
The clamping mechanism is made with the possibility of folding

absorbent gasket of larger diameter

insulating impermeable gasket of smaller diameter

protective pad

impregnating gasket

Due to the corrugated housing, insulating and impregnating gaskets of different diameters are placed in the device

The product will significantly protect those who are in public transport, shopping malls, on the street and those who are engaged in the disposal and cleaning of streets

Application

It is advisable to use this product at home while caring for patients to reduce the risk of infection of family members

In public places

At home

The use of the product will reduce the negative attitude of others to people with cough, with the discharge of sputum when coughing

The disposal of these wastes may belong to a group of particularly dangerous medical waste of class "B" and "C". Their collection and disposal is carried out separately from household waste

You can put a used mask and gloves in the product and thanks to this you do not need to throw them out on the street or in public bins

needs sorting

modification

Disposal
